Tel: 0086-021-58999010Tel: 0086-021-58999010Tel: 0086-021-58999010We are engaged in manufacturing and supplying elastic rail clip which are exclusively used in railways. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high precision which impart high tensile strength and corrosion resistance. Our products can also be customized according to clients' requirement.
Universally accepted in the railway industry, elastic rail clip provides high performance clamping of the rail, coupled with ease of installation.
SUYU has linked up with reputable quality manufacturers to offer a cost effective range of elastic rail clip to suit many rail sections and applications.
Strict dimensional control, as well as the use of high quality spring steel, ensure that the elastic rail clip and other elastic railway fastenings supplied by SUYU are within specified ranges aimed at meeting customer requirements.

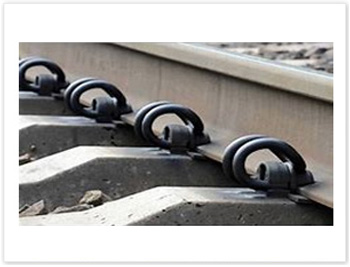

1、E type rail clip
We are extremely capable of producing elastic rail clip for any type of toe load and axle load requirements to fix the rails on wooden, steel or concrete sleepers. We offer various elastic rail clip with size steel bar diameter from 16mm to 20mm. We manufacture different types of elastic rail clips with flat toe for broad gauge line, having the toe load from 850kgf to 1100kgf, and are capable of providing any type of toe load and axle load to fix the rails on wooden, steel or concrete sleeper.
We can provide many kinds of E type clips , also we can customize according to customer requirement .
No. | Type | Weight(kg) |
1 | E1609 | 0.45 |
2 | E1806 | 0.64 |
3 | E1809 | 0.64 |
4 | E1817 | 0.64 |
5 | E2009 | 0.78 |
6 | E2039 | 0.78 |
7 | E2055 | 0.78 |
8 | E2056 | 0.78 |
9 | E2063 | 0.78 |
10 | E2007 | 0.78 |
11 | E2003 | 0.78 |
12 | E2006 | 0.78 |
13 | E2006 | 0.78 |
Fatigue test: 5 million cycles without breaking
Material : 60Si2MnA
Diameter 16mm.18mm.20mm.
Surface treatment: Plain oil, black, ZINC, HDG, painted

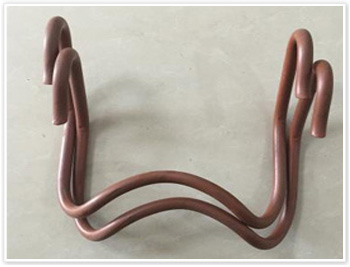

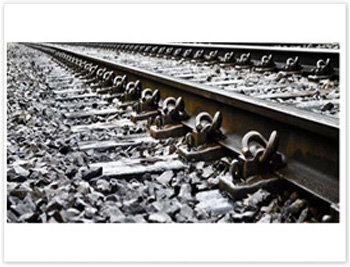

2、SKLTensin clamp
We are the principal manufacturer and exporter of SKL tension clamp, which ensures the electric insulation of the rail on its support. These tension clamps are mainly used to maintain the rail elastically on its support, in both the vertical and transverse directions. We have provided a fixing and supporting device for a rail, comprising a support defining table for the rail and a projecting shoulder on each side of said table, a pad interposed between the rail and the support table, an insulating clip having a body cooperative with the shoulder and a nose portion bearing against the flange of the rail, at least one elastically yieldable strip, and fixing equipment extending through apertures of the body of the elastic rail clip and the strip.
Our elastic rail clip is a boltable clip with high permanent clip strength.This rail clip is especially applied in rail construction with concrete sleepers with the diameter 13mm to 15mm, range from SKL1, SKL2, SKL3, SKL12, SKL14,SKL21, etc.
We can provide many kinds of SKL clips ,, also we can customize according to customer requirement .
No. | Type | Weight(kg) |
1 | SKL-1 | 0.49 |
2 | SKL-2 | 0.50 |
3 | SKL-3 | 0.51 |
4 | SKL-12 | 0.54 |
5 | SKL-14 | 0.505 |
6 | SKL21 | 0.51 |
Fatigue test: 3million cycles without breaking
Material : 60Si2CrA
Diameter 13mm.
Surface treatment: Plain oil, black, ZINC, HDG, painted

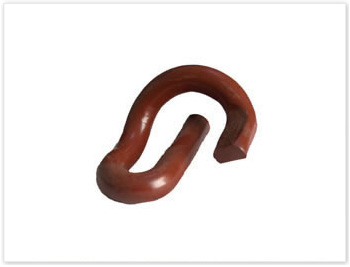

3、PR type rail clip
PR series rail clip is usually used on steel sleeper and wooden sleeper ,It is used with tie plate to fasten the rails.
We can provide many kinds of SKL clips ,, also we can customize according to customer requirement .
No. | Type | Weight(kg) |
1 | PR401 | 0.970 |
2 | PR309 | 0.870 |
3 | PR85 | 0.280 |
4 | PR601 | 0.980 |
Fatigue test: no less than 5 million cycles
Diameter: 20mm 22mm
Material: 60Si2MnA
Surface: Plain oil, black, ZINC, HDG, painted

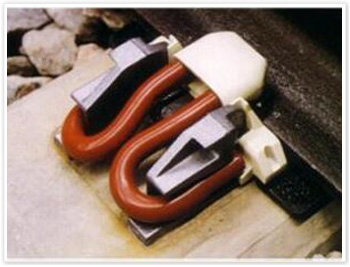

4、Deenik clip
Deenik clips are usually used on steel sleeper and concrete sleeper , it is used in conjunction with other rail accessories to fix rails.
The Deenik clip is widely used in South America.. The invention of rail clips revolutionized the speed of the railway transportation. As the manufacturer of rail clips, we are proud of our high quality products and good after-sale service, which have been appraised by many clients.
Material: 60Si2MnA
Diameter .15mm. 16mm
Surface: Plain oil, black, ZINC, HDG, painted

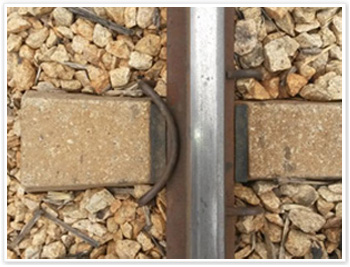

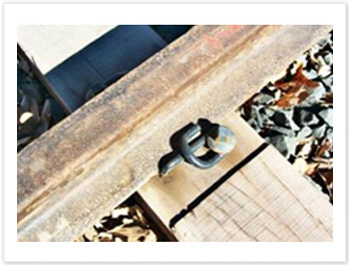

5、Guage lock clip
Guage lock clips are usually used on wooden sleeper and used with screw spike to secure rails.It is widely used in South American countries
Diameter: 14mm
Material: 60Si2MnA
Surface: Plain oil, black, ZINC, HDG, painted

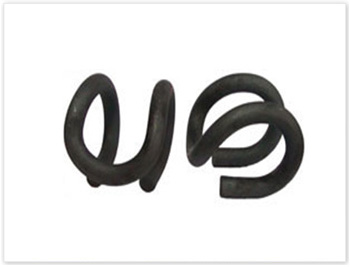

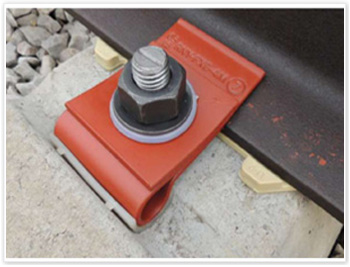

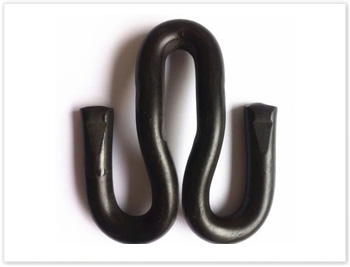

6、Fast clip
Fast clip is usually used on concrete sleeper and wood sleeper , which is used with other rail accessories to fix rails. Widely used in South American countries
The fast clip is designed with a captive system. Sleeper manufacturers shall assemble the components on the sleeper before delivery. This product is specially offered for the mechanized track renewals requiring automated clipping machines or hand tools. The clip for the system is manufactured in the shape of M, driven at right angles to the rail. Specially provided for 26tons axle load, the fast clip can be produced for heavy haul rail with the axle load up to 40tons .
Diameter: 15mm 16mm
Material: 60Si2MnA
Surface: Plain oil, black, ZINC, HDG, painted

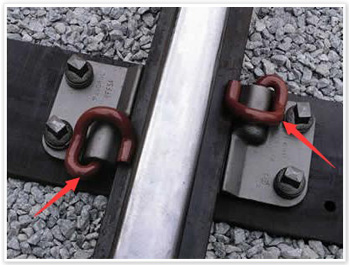

7、Fist clip
Fist clip is a special spring clip ,which is used on concrete sleeper , used with insulation pin and base plate for fixed rails, widely used in African countries
Diameter: 16mm
Material: 60Si2MnA
Surface: Plain oil, black, painted

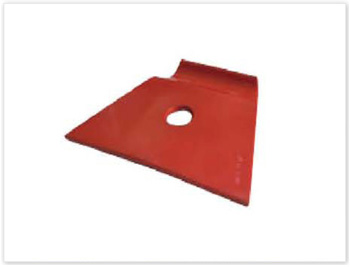

8、Nabla clip
Nabla clip is widely used in some countries in North Africa. It is also used on concrete sleepers , and used together with some accessories such as screw spike and Insulator.
Nabla clip has excellent elastic property, with load 2500DaN. After the first two tests, variation of the height after releasing is only 0.45mm and after 3rd tests, there is only 0.1mm variation of height.
Thickness: 4.5MM
Material: 60Si2MnA
Hardness: 51-55HR
Surface: Natural oiled, black or red painting .

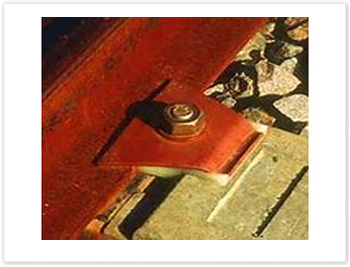

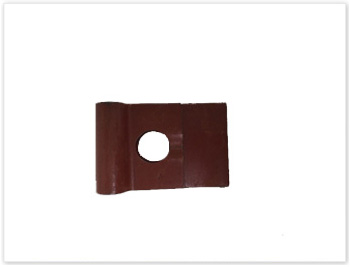

9、Elastic plate
The Elastic plate is widely used in Mexico and other European countries ,which is also used on concrete sleeper ,together with some accessories such as rail screw and Insulator.to fix the rails .
Thickness: 4.5MM
Material: 60Si2MnA
Hardness: 51-55HRC
Surface: Natural oiled, black or red painting .
