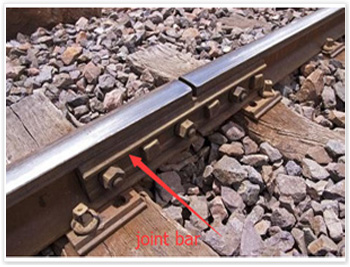

Tel: 0086-021-58999010Tel: 0086-021-58999010Tel: 0086-021-58999010Rail joint bar also known as splice bar, fish plate, connecting two rails together, the high-quality rail connecting rod can greatly reduce the impact of the wheel on the rail connection part, and increase train continuity and stability when passing the connection part . This kind of railway component is a kind of guarantee for railway transportation. It is the most useful product in the construction of railway, and it is sturdy and durable.
The rail joint is a railway fastener used with a track bolt .nut and spring washer and plays an important role in the rail connection. There are various types and different standard rail joints depending on the application.
SUYU can provide you with different standard rail joints, such as AREMA, BS, UIC, AS.GOST, as well as different types, such as common joint, compromise joint bar, insulated joint bar and so on.
Our products have been exported to more than 20 countries and regions to provide customers around the world with over 50 standard and non-standard rail joints.
Material: Q235.35#.40# .45#5.0#.55#
Process: Rolling /forging
Surface: Plain
1、Common rail joint

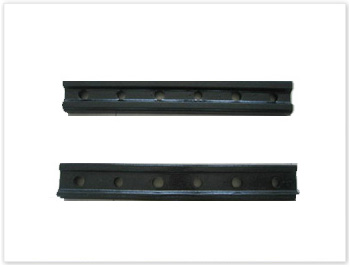

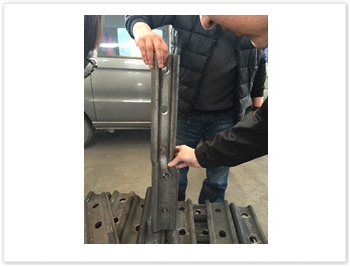

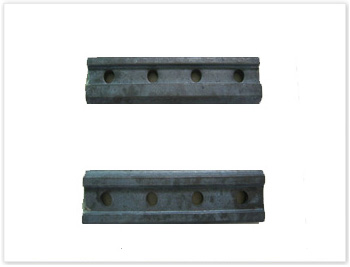

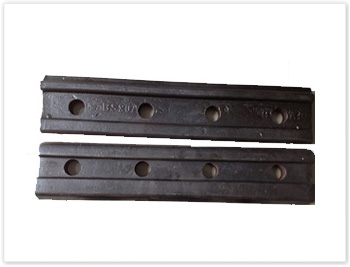

Common rail joint section shape is standard, divided into 4 holes or 6 holes, used in the conventional rails , we can provide a variety of standard Rail joint bar, product details see the table below.
No. | Type | Holes | Material | Standard |
1 | 136-132RE | 6 | 50#/55# | AREMA |
2 | 4 | |||
3 | 115-119RE’ | 6 | ||
4 | 4 | |||
5 | 100-8 | 6 | ||
6 | BS80A | 4 | 50#/55# | BS |
7 | BS80O | 4 | ||
8 | BS80R | 4 | ||
9 | BS75A | 4 | ||
10 | BS75R | 4 | ||
11 | BS90A | 4 | ||
12 | BS100A | 4 | ||
13 | UIC50 | 6 | 50#/55# | UIC |
14 | 4 | |||
15 | UIC54 | 6 | ||
16 | 4 | |||
17 | UIC60 | 6 | ||
18 | 4 | |||
19 | 50KG | 6 | 45#/50# | AS |
20 | 4 | |||
21 | 90/91LB | 6 | ||
22 | 4 | |||
23 | P65 | 6 | 55# | GOST |

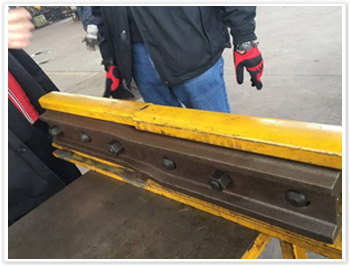

2、Compromise joint bar
Compromise joint bar , which is a material involved in railway applications, connects different types of rails while keeping the rail gauge and rail surface aligned. It is used together with fish bolt .nut spring washer.
The Compromise joint bar has a wide range of applications in railway lines, such as the connections between railway turnouts and main rail lines, as well as other types of railway connections. We can provide Compromise joint bars with the following specifications. The products are shown in the table below.
No. | Type | Size | Material | Unit weight | Remark |
1 | Compromise joint bar with worn out | 136RE-115RE | 55# | 26.0 | 4pcs per set |
2 | 132RE0115RE | 55# | 26.0 | 4pcs per set | |
3 | Offset joint bar | 136RE-132RE | 55# | 26.7 | 2pcs per set |
4 | 141RE-136RE | 55# | 26.7 | 2pcs per set | |
5 | 141RE-132RE | 55# | 26.7 | 2pcs per set | |
6 | 100-8 of 1/8〞 | 55# | 15.6 | 2pcs per set | |
7 | 100-8 of 3/8〞 | 55# | 15.6 | 2pcs per set | |
8 | 100-8 of 1/4〞 | 55# | 15.6 | 2pcs per set | |
9 | 115RE of 1/4” | 55# | 25.0 | 2pcs per set | |
10 | 115RE of 1/16 rdquo; | 55# | 25# | 2pcs per set | |
11 | Weld repair joint bar | 100-8 | 55# | 15.6 | 2pcs per set |
Material and bar length can be customized upon buyer request. | |||||
3.Insulated rail joint
The Insulated rail joint acts as a resistor. It is used together with plastic Polyamide, an insulating material that includes an insulated liner. Insulated sleeve and end post. This device controls signals and disconnects the rail identification system. The end post of the Insulated rail joint can be divided into two types: insert end and glue end.

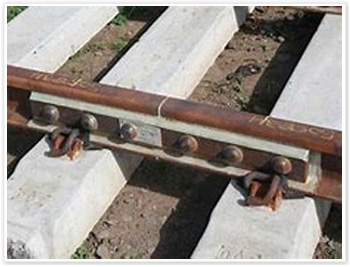

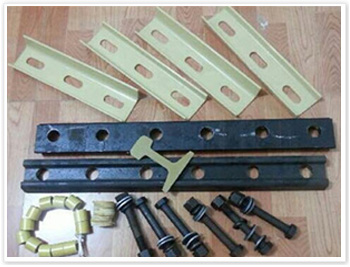

Insulated rail joint component , for example 6 holes joint bar
| Item | Qty of one set | Material |
Joint bar | 2 | 45#/50# |
Fish bolt with nut spring washer （high strength） | 6 | 42CrMo/65Mn |
End post | 1 | Polyamide |
Insulation liner | 2 | Polyamide |
Insulation sleeve | 6 | Polyamide |

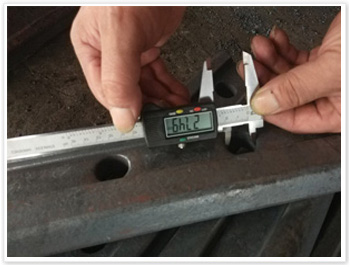

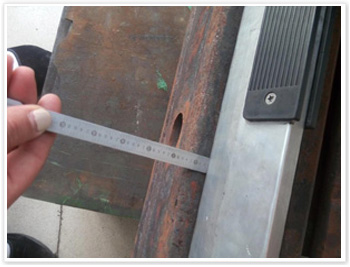

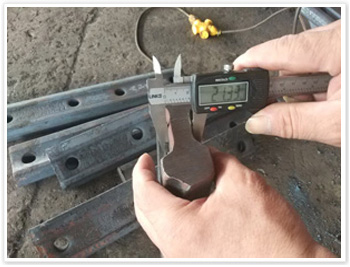

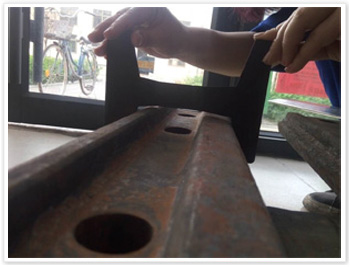

Quality is our most concern. We strictly follow the ISO quality control system. The workshop has a 24-hour quality control team to ensure strict quality inspection procedures. In each processing step, we follow strict quality rules. What's more, our laboratory will randomly select 5% rail joints as test objects, along with formal quality inspection reports. Under such a complete quality system, we have never received complaints from our buyers.
